Full Specification

Please enter the quantity of each item that you require and press “Add To Quote” button to proceed.

View Data Specification

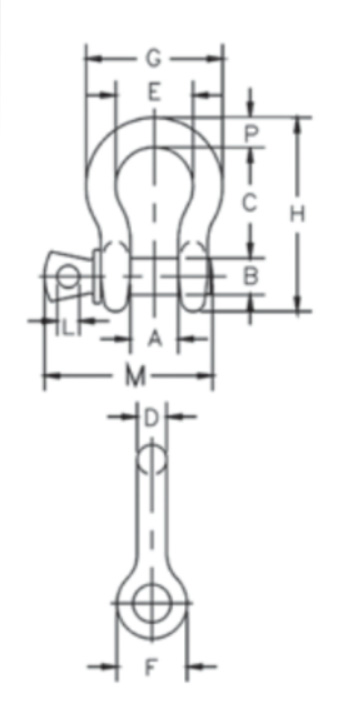

Working Load Limit (Ton) Nominal Size (inch) Stock No. Weight Each (lb) Dimension (inch) Tolerance
+/- 		Quantity
A B C D E F G H L M P C A
0.33 3/16 1018357 0.06 0.38 0.25 0.88 0.19 0.6 0.56 0.98 1.47 0.16 1.14 0.19 0.6 0.6
0.5 1/4 1018375 0.1 0.47 0.31 1.13 0.25 0.78 0.61 1.28 1.84 0.19 1.43 0.25 0.6 0.6
0.75 5/16 1018393 0.18 0.53 0.38 1.22 0.31 0.84 0.75 1.47 2.09 0.22 1.71 0.31 0.6 0.6
1 3/8 1018419 0.31 0.66 0.44 1.44 0.38 1.03 0.91 1.78 2.49 0.25 2.02 0.38 0.13 0.6
1.5 7/16 1018437 0.38 0.75 0.5 1.69 0.44 1.16 1.06 2.03 2.91 0.31 2.37 0.44 0.13 0.6
2 1/2 1018455 0.72 0.81 0.63 1.88 0.5 1.31 1.19 2.31 3.28 0.38 2.69 0.5 0.13 0.6
3.25 5/8 1018473 1.27 1.06 0.75 2.38 0.63 1.69 1.5 2.94 4.19 0.44 3.34 0.69 0.13 0.6
4.75 3/4 1018491 2.35 1.25 0.88 2.81 0.75 2 1.81 3.5 4.97 0.5 3.97 0.81 0.25 0.6
6.5 7/8 1018516 3.62 1.44 1 2.31 0.88 2.28 1.09 4.03 5.83 0.5 4.5 0.97 0.25 0.6
8.5 1 1018534 5.03 1.69 1.13 3.75 1 2.69 1.38 4.69 6.56 0.56 5.13 1.06 0.25 0.6
9.5 1-1/8 1018552 7.41 1.81 1.25 4.25 1.16 2.91 2.69 5.16 7.47 0.63 5.71 1.25 0.25 0.6
12 1-1/4 1018570 9.5 2.03 1.38 4.69 1.29 3.25 3 5.75 8.25 0.69 6.25 1.38 0.25 0.6
13.5 1-3/8 1018598 13.53 2.25 1.5 5.25 1.42 3.63 3.31 6.38 9.16 0.75 6.83 1.5 0.25 0.13
17 1-1/2 1018614 17.2 2.38 1.63 5.75 1.54 3.88 3.63 6.88 10 0.81 7.33 1.62 0.25 0.13
25 1-3/4 1018632 27.78 2.88 2 7 1.84 5 4.19 8.86 12.34 1 9.06 2.25 0.25 0.13
35 2 1018650 45 3.25 2.25 7.75 2.08 5.75 4.81 9.97 13.68 1.22 10.35 2.4 0.25 0.13
55 2-1/2 1018678 85.75 4.13 2.75 10.5 2.71 7.25 5.69 12.87 17.84 1.38 13 3.13 0.25 0.25
